西科斯基S-76D直升机

概述 Overview

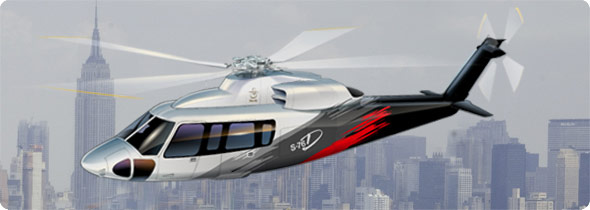

The S-76D helicopter is truly the next step in helicopter technology, setting a new standard of excellence that S-76® helicopter operators have come to expect. Power and performance are enhanced by all composite main rotor blades and optimized Pratt & Whitney Canada PW210S engines with dual FADEC controls. Its quiet tail rotor will allow for reduced external acoustic signature and gain acceptance with the communities where it operates. Pilots will appreciate the state-of-the-art integrated Thales cockpit, its increased range and its ability to launch into known icing conditions. Passengers will love the quieter cabin.

特性 Attributes

动力装置和燃油系统 Powerplant and fuel system

发动机数目 Number of Engines 2
发动机类型 Engine Type Pratt & Whitney Canada PW210S
起飞轴马力 Take-off Shaft horsepower (5 min) 1,050 shp  783 kw
OEI轴马力 OEI Shaft horsepower (30 sec) 1,241 shp  925 kw

性能 Performance

最大总重 Maximum Gross Weight 11,700 lbs  5,306 kg
最大巡航速度 Maximum Cruise Speed 155 kts  287 kph
最大航程 Maximum Range - No Reserve 441 nm  818 km
HIGE升限 Hover In Ground Effect Ceiling 9,700 ft  2,957 m
HOGE升限 Hover Out of Ground Effect Ceiling 5,000 ft  1,524 m
单发工作升限 OEI Service Ceiling 7,550 ft  2,301 m
AEO工作升限 AEO Service Ceiling 15,000 ft *  4,572 m *
